Sigma Integrale AMBU bag actuator

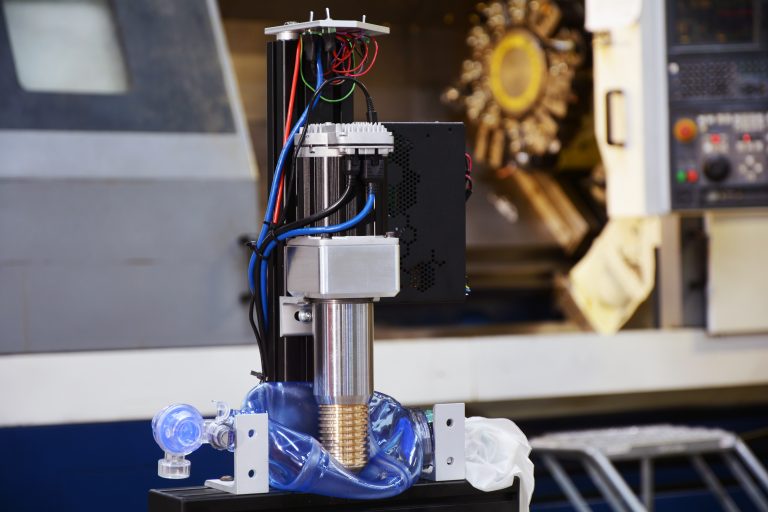

Sigma Integrale LLC, took on the challenge of creating a low cost automated AMBU bag actuator. The automated AMBU bag actuator system is under $1500 and can be constructed with simple 80/20 extruded profile, a micro-controller, some simple switches, motor and power unit. The integration is simple and robust and focused around our inhouse USA-Made bronze lead-screw actuator and motor combination. The buttons allow for multiple settings such as infant, child and adult strokes and three additional rates of respiration. https://www.sigmaintegrale.com/wp-content/uploads/2020/04/Sigma_Integrale_Actuator_1-768x512.jpg The research, design and build took a little over 2 week to put together and integrate with available materials around our lab. This is not an FDA approved respirator or device, but just a robust automated bag depressor. https://www.sigmaintegrale.com/wp-content/uploads/2020/04/Sigma_Integrale_Actuator_2-768x512.jpg Arduino code: 2020-04-13-Controller-Code - https://www.sigmaintegrale.com/wp-content/uploads/2020/04/2020-04-13-Sigma_Ambubag_Actuator_Code.ino Teknic Motor: CPM-SDSK-3432P-RLN - https://www.teknic.com/model-info/CPM-SDSK-3432P-RLN/ Teknic Power Unit: IPC-5 Power Supply - https://www.teknic.com/products/servo-motor-dc-power-supply/#ipc-5-info
