Sigma Integrale

DK2+ Motion System

DK2+ Motion System

$5,880.00 USD
$5,880.00 USD
Sale Sold out
Shipping calculated at checkout.
Actuators
Bracket

USA domestic shipping is 3-5 days. All international shipping is typically 5-7 days.

Double the performance at half the cost of other turnkey motion systems. Utilizing modern controllers with low total loop latency with no distracting effects or gimmicks.

Similar to our DK2 motion system, the DK2+ is a pure motion system for serious sim-racing enthusiasts, drivers, researchers and sim centers. The system shares the same design and construction as our industrial-grade DK-X motion systems used in our full motion vehicle and platform simulators. All our systems are mechanically and electrically engineered around our unique motion algorithms to provide the most realistic and pure representation of vehicle dynamics without relying on pre-recorded canned effects.

DK2+ takes a modern approach to signal processing and motion control to create the most responsive system on the market. Every elevation change, vehicle movement, surface change and gear shift, is captured and reproduced within 2” (50mm) of the available mechanical stroke. (Full Send Video Proof)

The DK2+ was originally created to serve many sim centers around the world. The larger motor is capable of 800 lbs. (360 kg.) of total supported mass and hence can support a larger variety of drivers or exceptionally heavy rigs. The DK2+ continues to be the go to motion solution for sim centers or for professional users looking for that little bit more.

View full details

  • PROS | 3 Actuator System

    • more affordable and always upgradable
    • can be better for uneven floors
    • ideal for flight simulation

  • PROS | 4 Actuator System

    • easier to mount on most extrusion rigs
    • greater total support weight (800 lbs.)
    • distinct front left and right haptic details
    • Ideal for both race and flight simulations

  • CONS | 3 Actuator System

    • harder to mount on some rigs
    • lower total supported weight (600 lbs.)
    • missing front left and right haptic details

  • CONS | 4 Actuator System

    • more expensive than 3 actuator systems

All Sigma DK2+ Motions Systems feature:

  • completely made from billet aluminum for optimal haptic transfer
  • feature a 2-inch (50mm) solid steel piston for exceptional side loading
  • use American made motors and controllers for exceptional signal control
  • have a 3-year electrical and 1-year mechanical system warranty
  • provide license free simple to use software with automatic over the air updates
  • years of maintenance free operation with no lubrication required
  • upgradable at any time in the future with our DK Upgrade Program

Technical Information

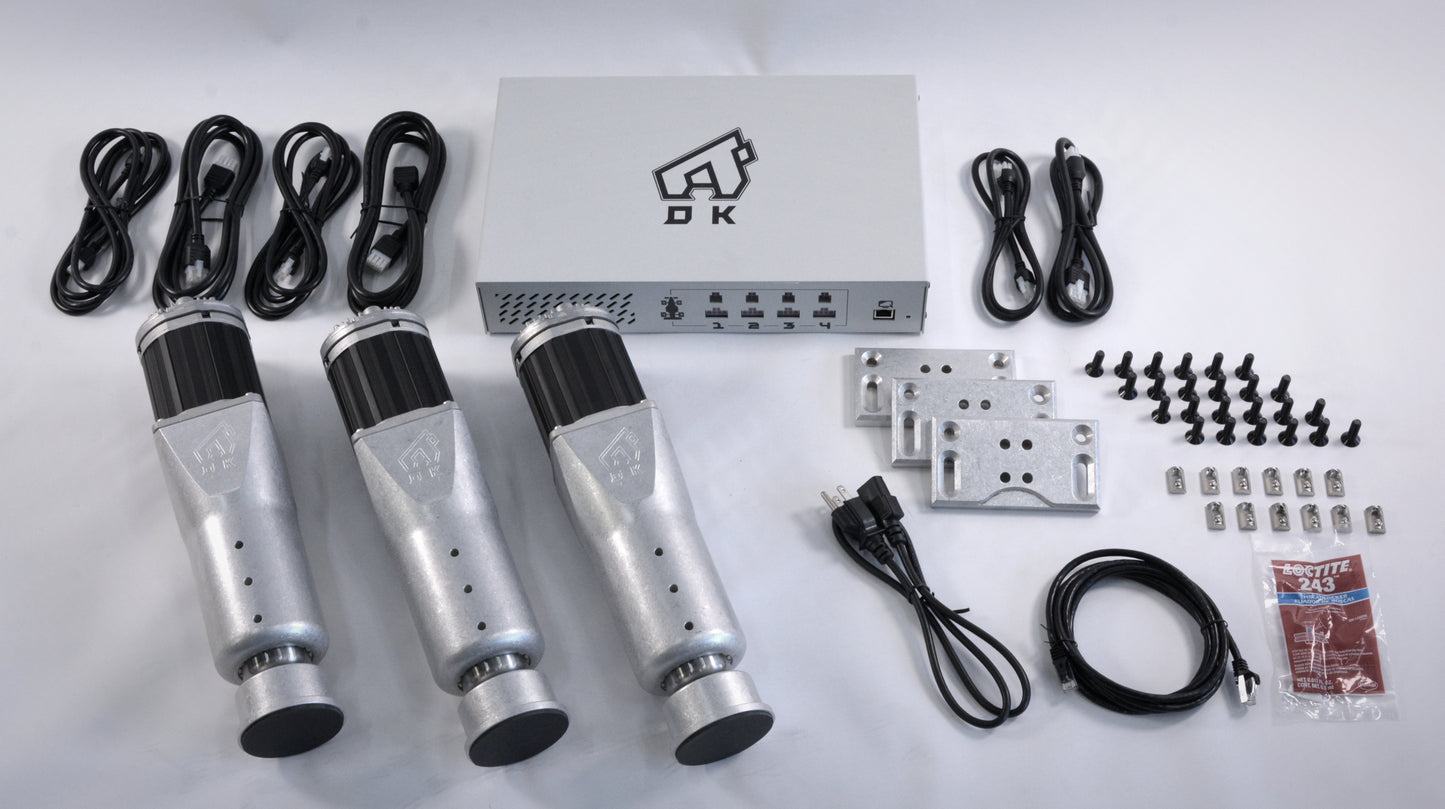

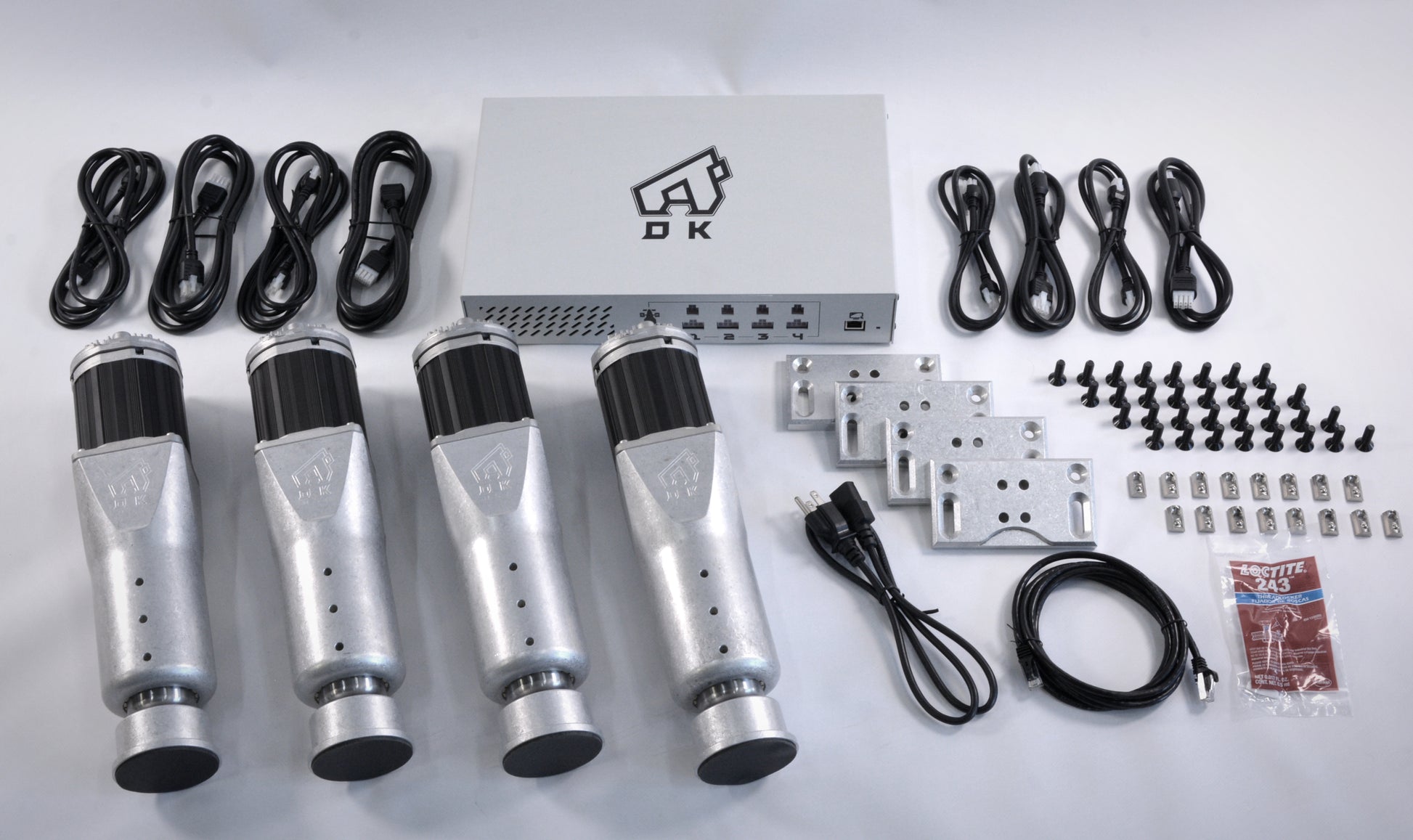

Contents

  • mono-block, machined billet actuators with 2” (50 mm) travel
  • powerful, responsive and compact American Teknic servo motors
  • maximum weight capacity (chassis and driver):
    • 3-actuator system = 600 lb (272 kg)
    • 4-actuator system = 800 lb (363 kg)
  • billet-machined floating feet with large rubber pads
  • aluminum t-slot mounting hardware compatible with 25 to 45 series profiles
  • single controller box (115v/240V compatible) with power and network cables
  • two sets of 1m and 2m data and power cables from the controller to actuators
  • Sigma’s motion algorithms & simulation software
  • automatic Over-the-Air controller firmware updates

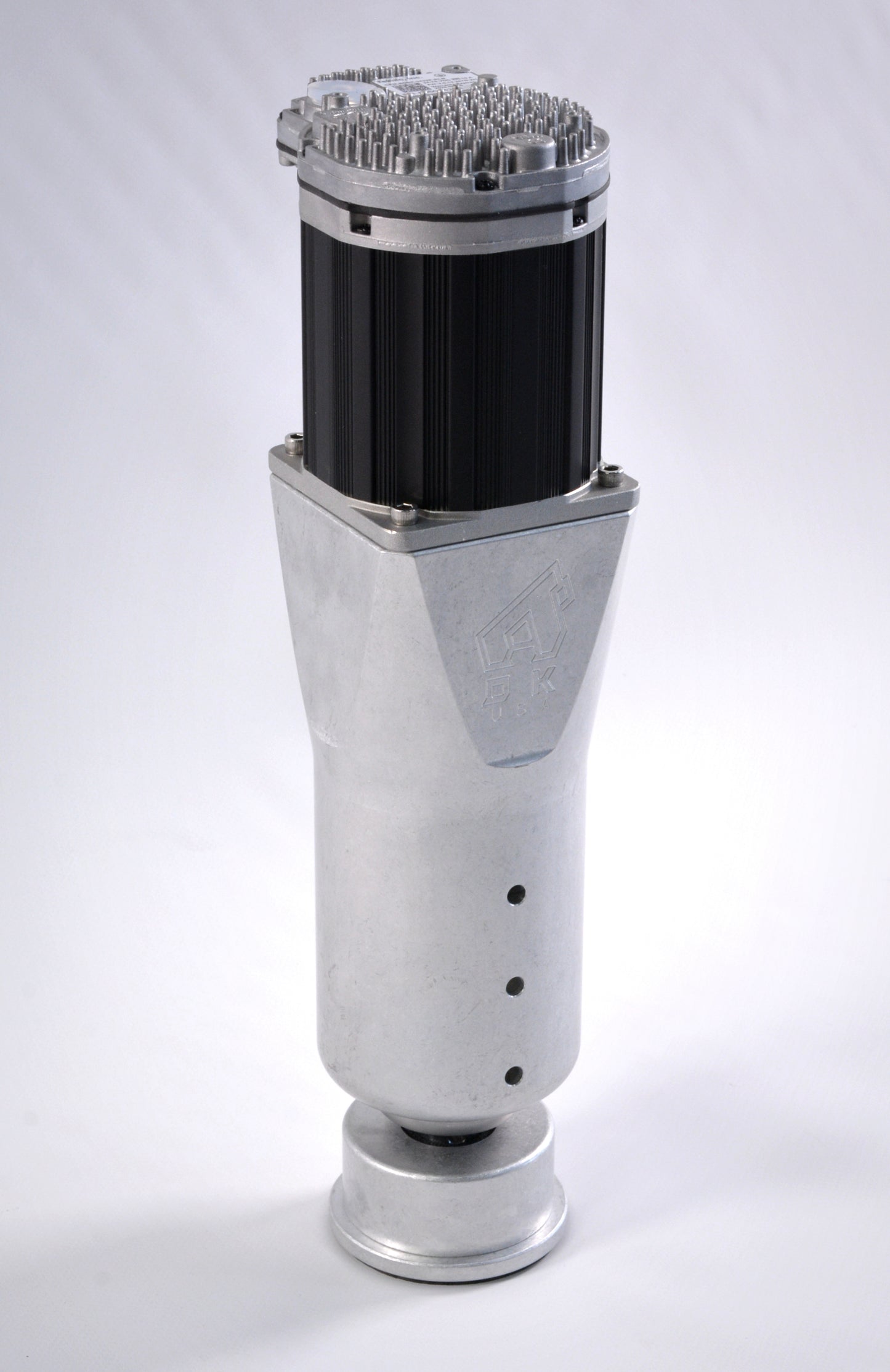

Actuators

  • 100% designed, manufactured, assembled and tested in California, USA
  • Premium THK ball screw for smooth performance and durability
  • Machined billet aluminum body to ensure concentricity and accuracy
  • 2″ (50mm) in piston diameter for large side-loading capability
  • T-slot aluminum extrusion friendly
  • 16 lbs. (7.26kg) per actuator with the larger motor
  • Environmentally friendly tumbled finish

Latency

  • PC side (Windows 10)
    • Game physics engine @ 333 Hz: 3 ms
    • Windows OS response: 1 ms average
    • Sigma 10-layers algorithm: 1 ms
    • Send target positions via Ethernet: 0.3 ms
  • Controller side (Real-time OS in ARM)
    • Response to new position targets: < 1 microseconds
    • Motion Algorithm for smooth motion: Average: 25 ms, Range: 0 to 50 ms
    • Send motion data to 1st micro-controller at 1000 Hz: 1 ms
  • Controller side (2 low-latency micro-controllers)
    • Send motion data from 1st micro-controller to 2nd: 0.1 ms
    • Digital pulse generation: 0.002 ms
  • Electrical connection from 2nd micro-controller to ClearPath motor
    • 3V to 5V conversion: 2 ms
  • ClearPath servo motor
    • Digital pulse signal to actual motion: 1 ms

Technical

  • ClearPath Integrated Servo Motor CPM-SDSK-3432P-RLN
    • Rated (RMS) Torque = 209 oz-in (1.5 N-m)
    • Peak Torque = 698 oz-in (4.9 N-m)
    • Max Speed = 2,380 rpm
    • Total Weight Capacity (for optimal performance), including fully-loaded simulator with driver:
      • 3-actuator system = 600 lb (272 kg)
      • 4-actuator system = 800 lb (363 kg)
    • Optically isolated, current-based I/O system (EMI free)
    • Average system draw at 110V is about 0.330 KW (Peak 1600VA)
  • In-house manufactured actuators | 3D Model: Available Upon Request
    • 2” (50mm) actuator travel
    • speeds of 7.93"/s @ 2,380 rpm
    • 5/8” diameter, USA ball screw and nut
    • 2” (50mm) diameter piston
    • Mono-block machined billet aluminum body
    • All American made components

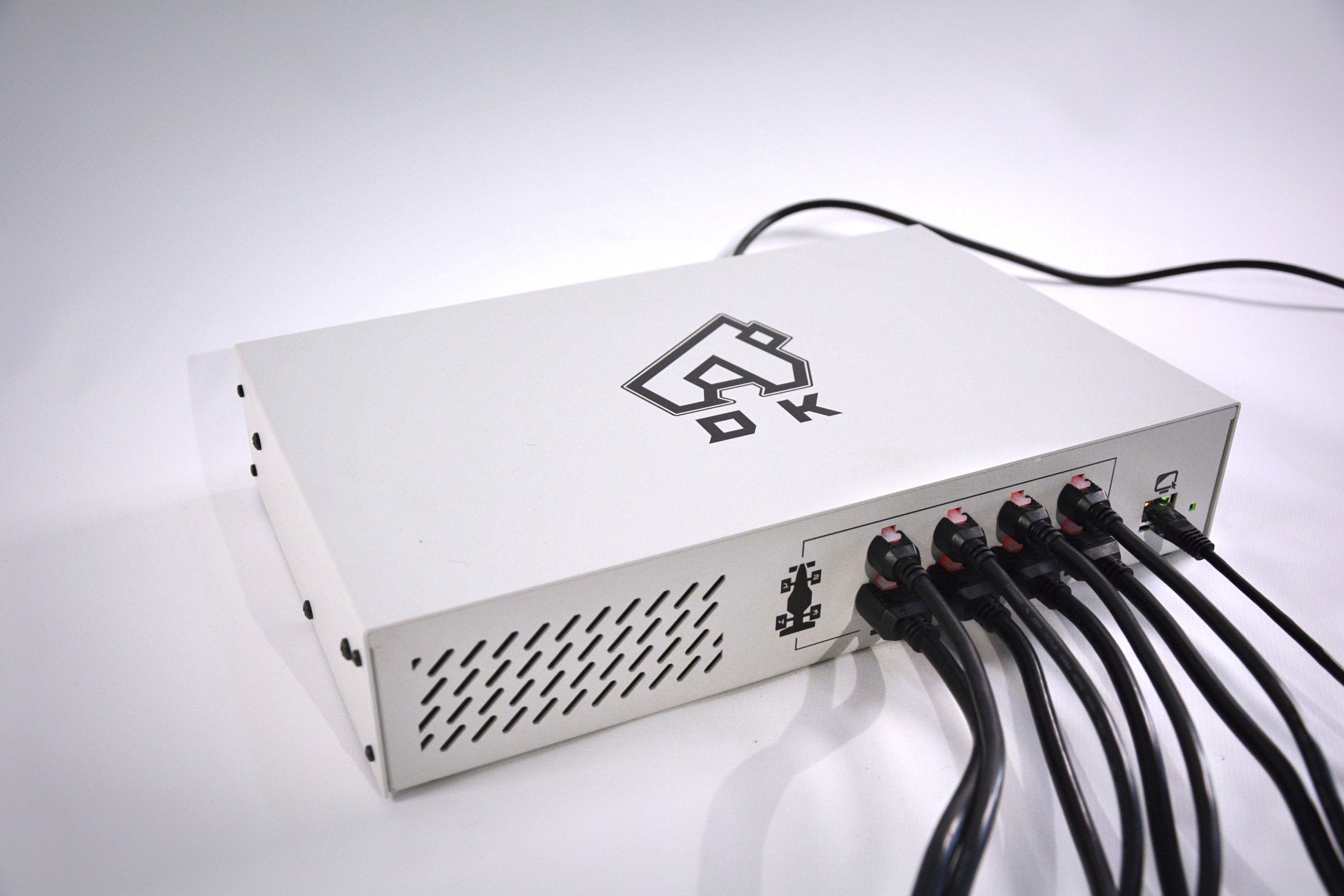

  • Motion Controller | 3D Model: Available Upon Request
    • ClearPath IPC-5 Intelligent Power Supply
    • Input voltage 95-125/190-250 VAC; 50-60Hz (NO INVERTERS REQUIRED!)
    • Real-time and remote motion control via default browser or phone/tablet
    • Signal processor with amplifier
    • Embedded microcontrollers
    • Shielded Molex connectors
    • 15" wide, 9.25" deep and 3" tall
  • Sigma's Software and Algorithms
    • Motion Integrity™ architecture to provide ultra-responsive, precise and accurate motion control
    • Dynamic scaling algorithm to best represent all layers in the available actuator travel
    • Organic and natural feeling Velocity Trap™ algorithm
    • Smooth integration of the 10 motion layers
    • Real-time remote control interface
    • Custom Motion Profiles
  • Mounting hardware
    • Machined billet mounting bracket
    • T-slot aluminum extrusion (80/20) friendly
    • Machined billet floating feet with mounting capability

Warranty & Shipping

Please refer to our Shipping Policy page for information on shipping, warranty and returns.

# of boxes Total Weight Length Width Height
2 Box 1 46lbs/20kg
Box 2 46lbs/20kg 		Box 1 46cm/18″
Box 2 46cm/18″ 		Box 1 32cm/12.5″
Box 2 32cm/12.5″ 		Box 1 26cm/10″
Box 2 26cm/10″
