DK6+ Actuator Upgrade

Complete DK6+ actuator package upgrade from 3-actuator to 4-actuator systems:

• aluminum bracket
• data and power cables
• tested motor with actuator

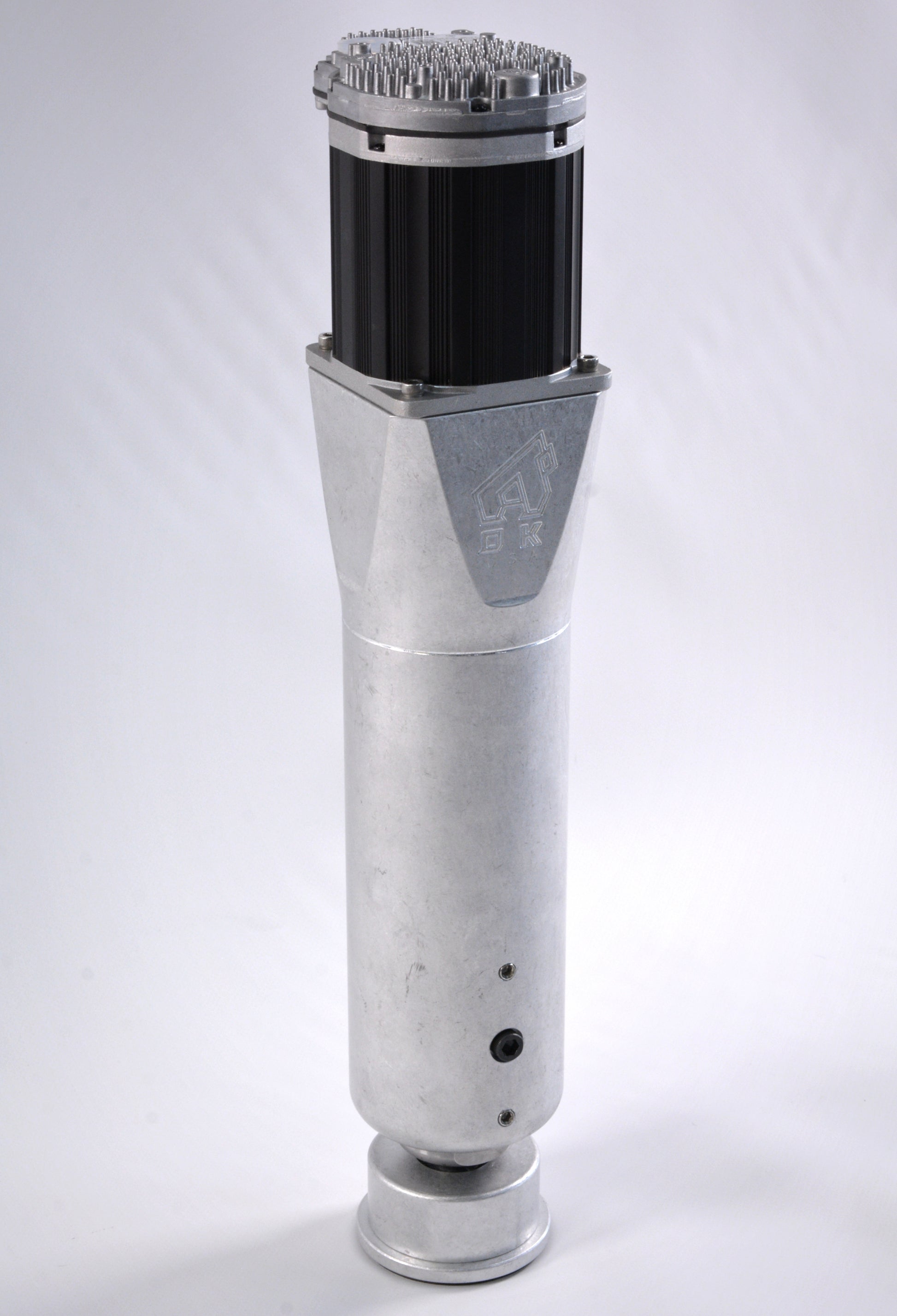

Actuator:

• 6” (150mm) actuator travel
• sustained speeds of 8.4"/s
• 5/8” diameter, USA ball screw and nut
• 2” (50mm) diameter piston
• Mono-block machined billet aluminum body
• Coupler (5/16" OD on the actuator side and 3/8" OD on the motor end)
• All American made components

Motor:

• Rated (RMS) Torque = 209 oz-in (1.5 N-m)
• Peak Torque = 698 oz-in (4.9 N-m)
• Max Speed = 2,380 rpm
• Total Weight Capacity (for optimal performance), including fully-loaded simulator with driver:
• 4-actuator system = 800 lb. (363 kg)
• Optically isolated, current-based I/O system (EMI free)
• Total system draw at 110V is about 330 W/h
