DK6++ Motion System

Ships three weeks from time of order. OEM integrators only.

USA domestic shipping is 3-5 days. All international shipping is typically 5-7 days.

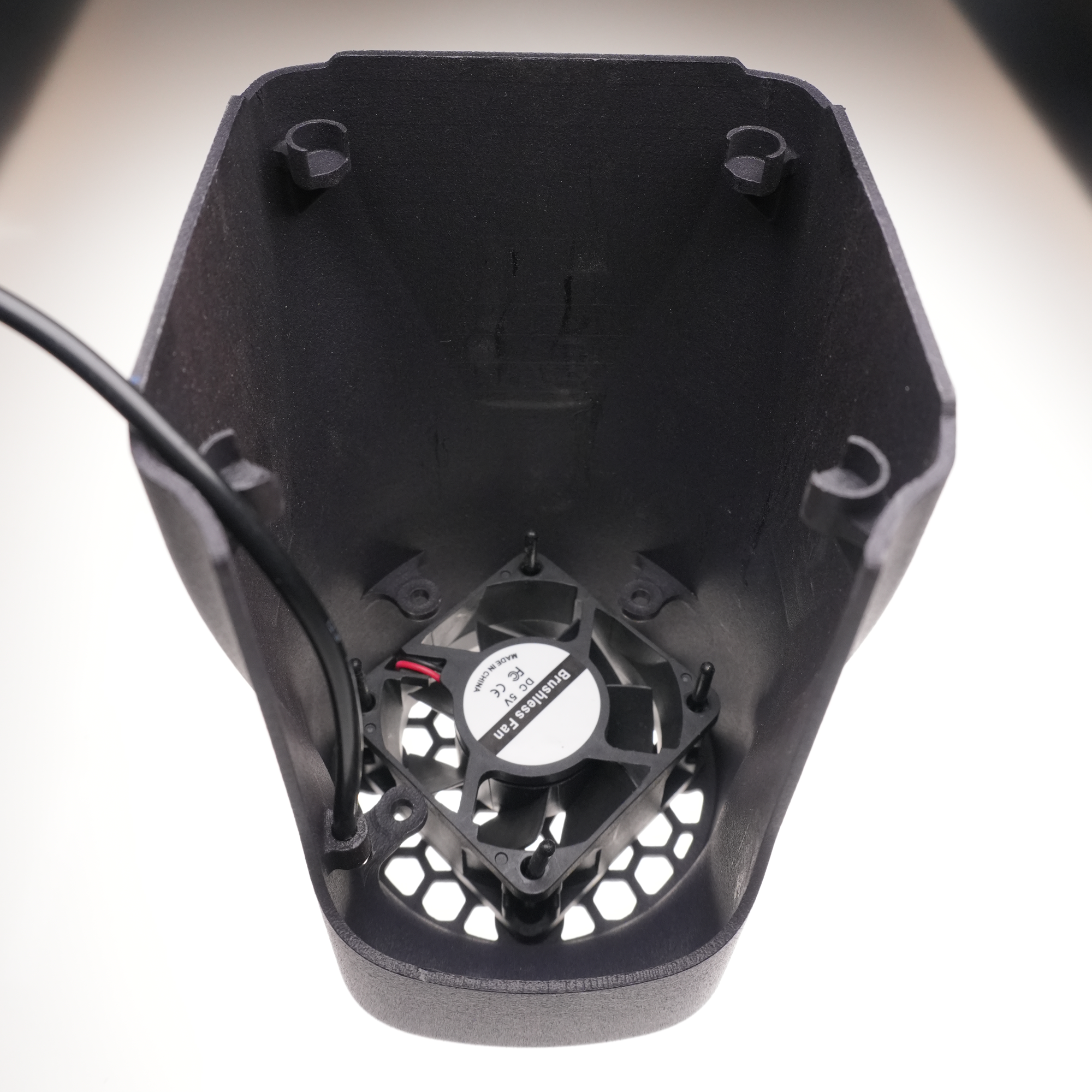

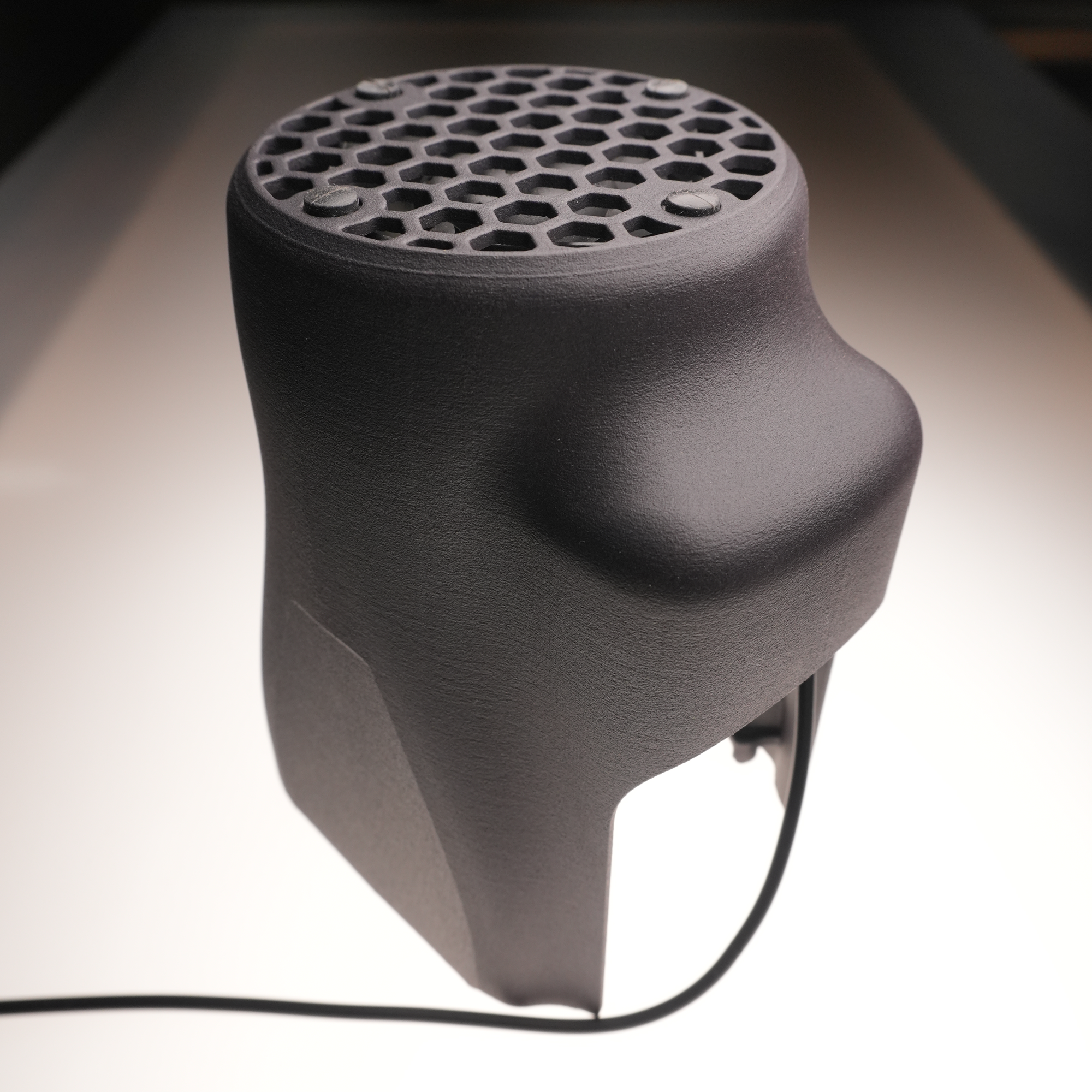

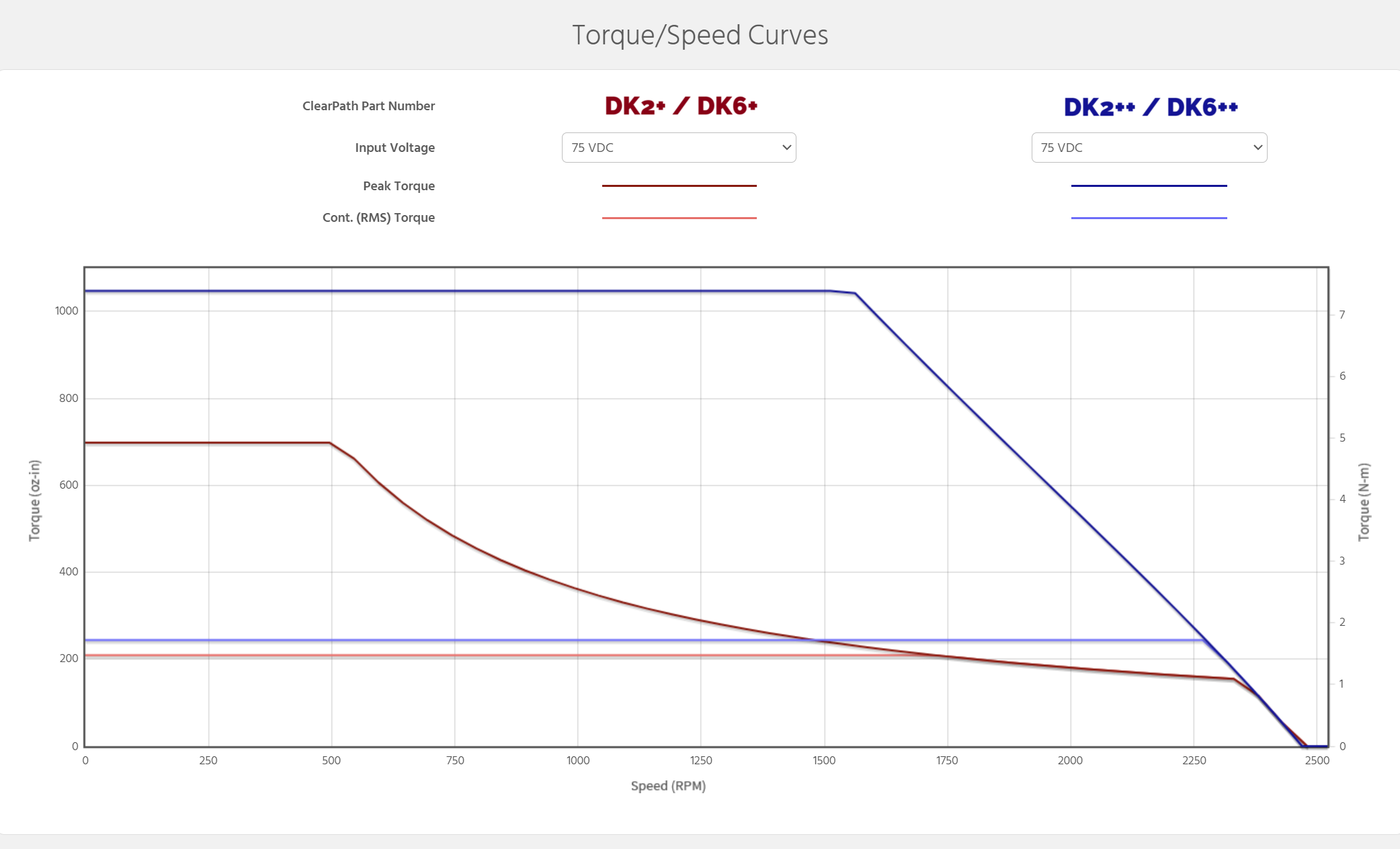

The DK6++ motion system is our OEM (integrator only) high mass adapted 6" (150mm) motion system designed for high travel simulation applications just like our DK6+ professional home system. The long stroke allows for better representation of our motion layers with less saturation. The system uses specialized High Power motors with cooling and three additional power supplies to achieve a maximum weight limit of 1200 lbs. (540 kg) or 400 lbs. (180 kg) more than the standard DK6+.

The system shares the same design and construction as our industrial-grade DK-X motion systems used in our full motion vehicle and platform simulators. Additionally, DK6++ is mechanically and electrically engineered around our unique motion algorithm to provide the most realistic and representative vehicle motion feedback with no pre-recorded canned effects.

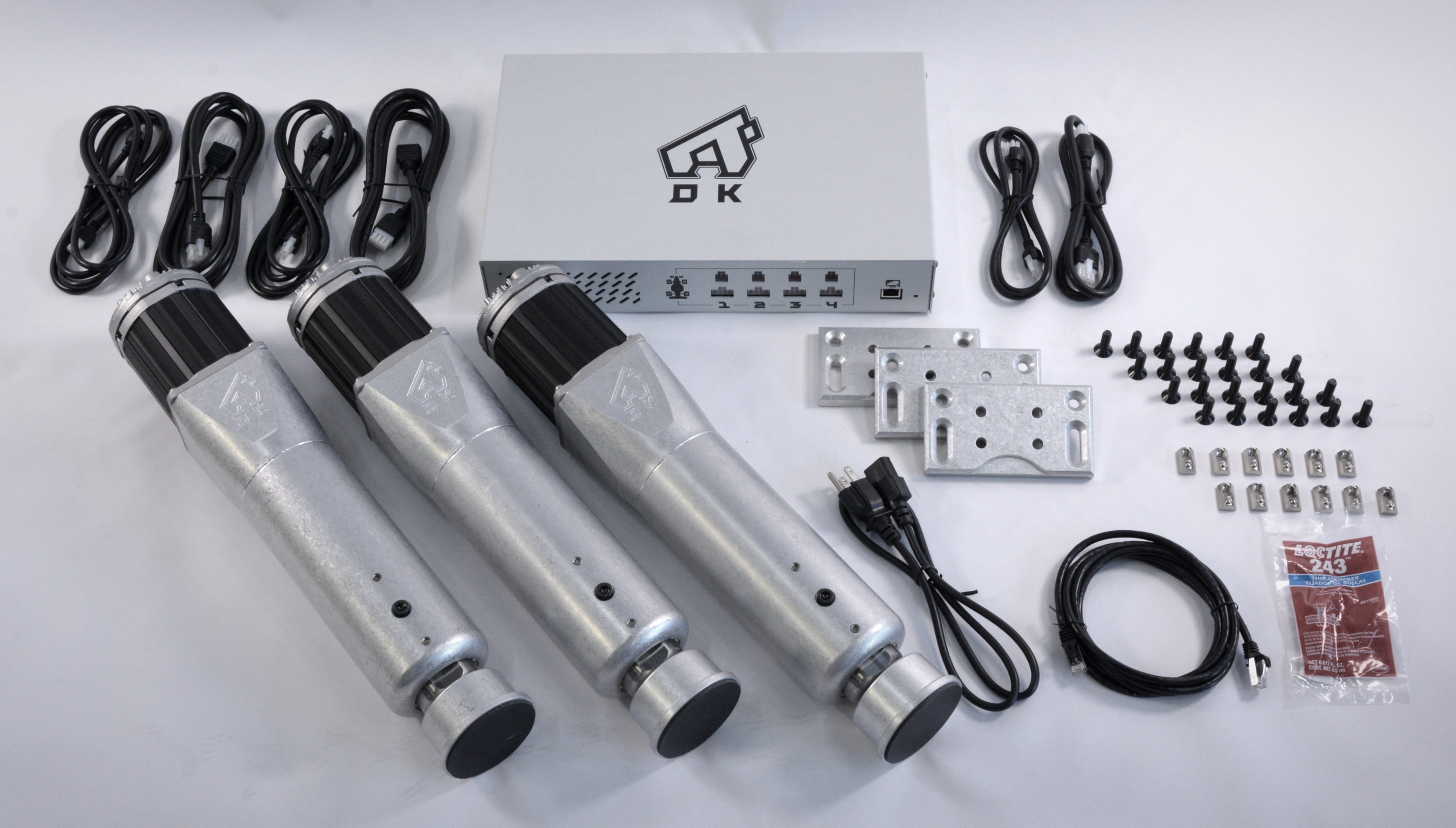

The DK6++ is designed for custom OEM integrators and ships with all the additional components required to move 50% more mass than the DK6 version. This product also requires a dedicated 20A or several 15A circuits to spread the electrical demands.

The DK6++ is also engineered with a solid steel piston and special dry run bearings for exceptional side loading capability and comes with both standard and extended brackets.
