DK Bracket Set
Our mounting bracket are specifically designed to work with our DK motion actuators. All our brackets are CNC'ed from billet aluminum for absolute strength and the best haptic feedback. Sold in sets of 4.

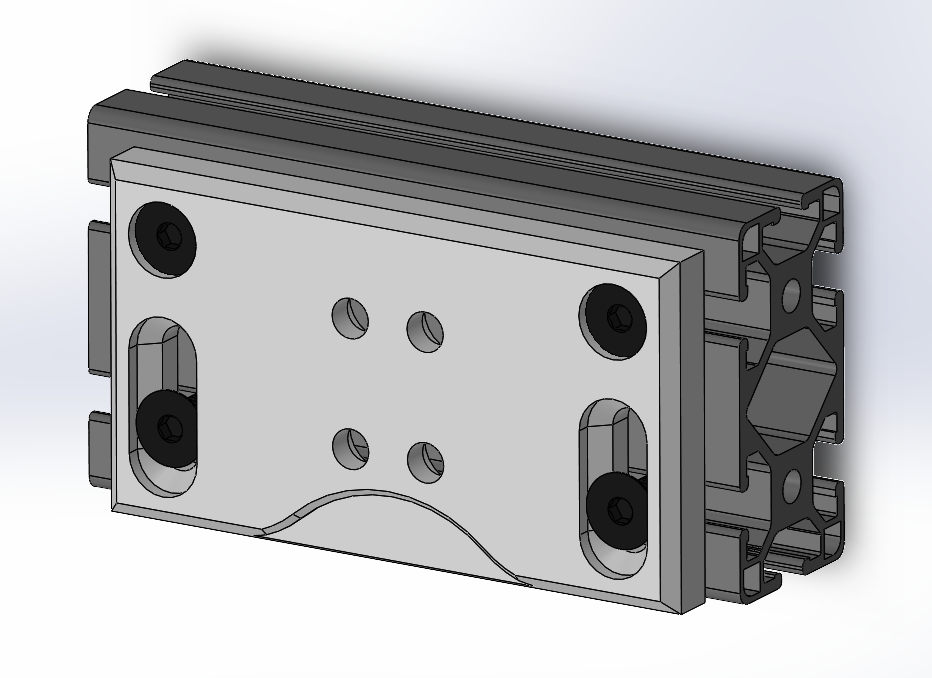

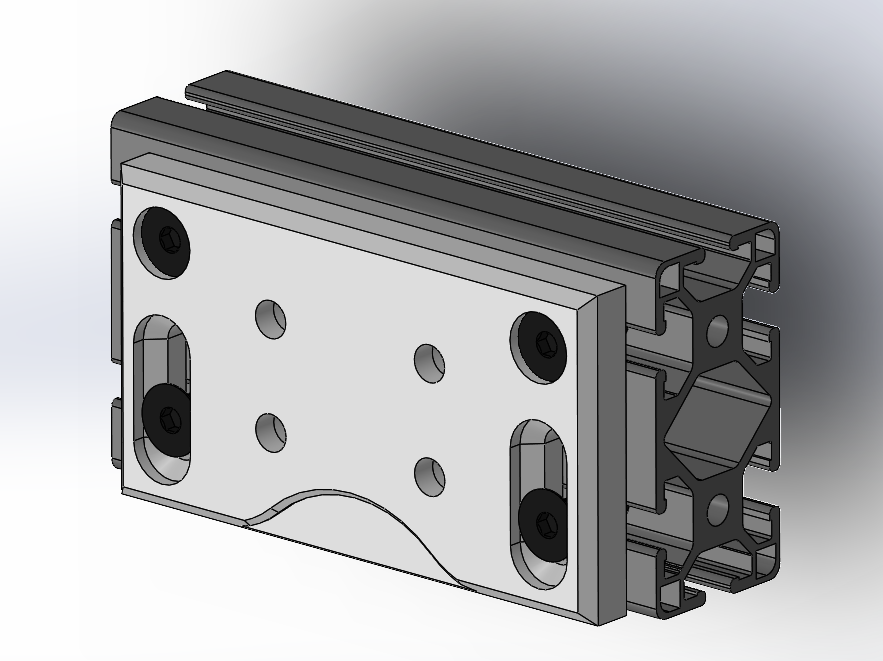

They are also mounted directly along side the extrusion without extending out of the chassis as to provide absolutely zero flex over time.
A proper bracket is critical to your haptic experience.
- Solid 6061-series aluminum in robust silver finish

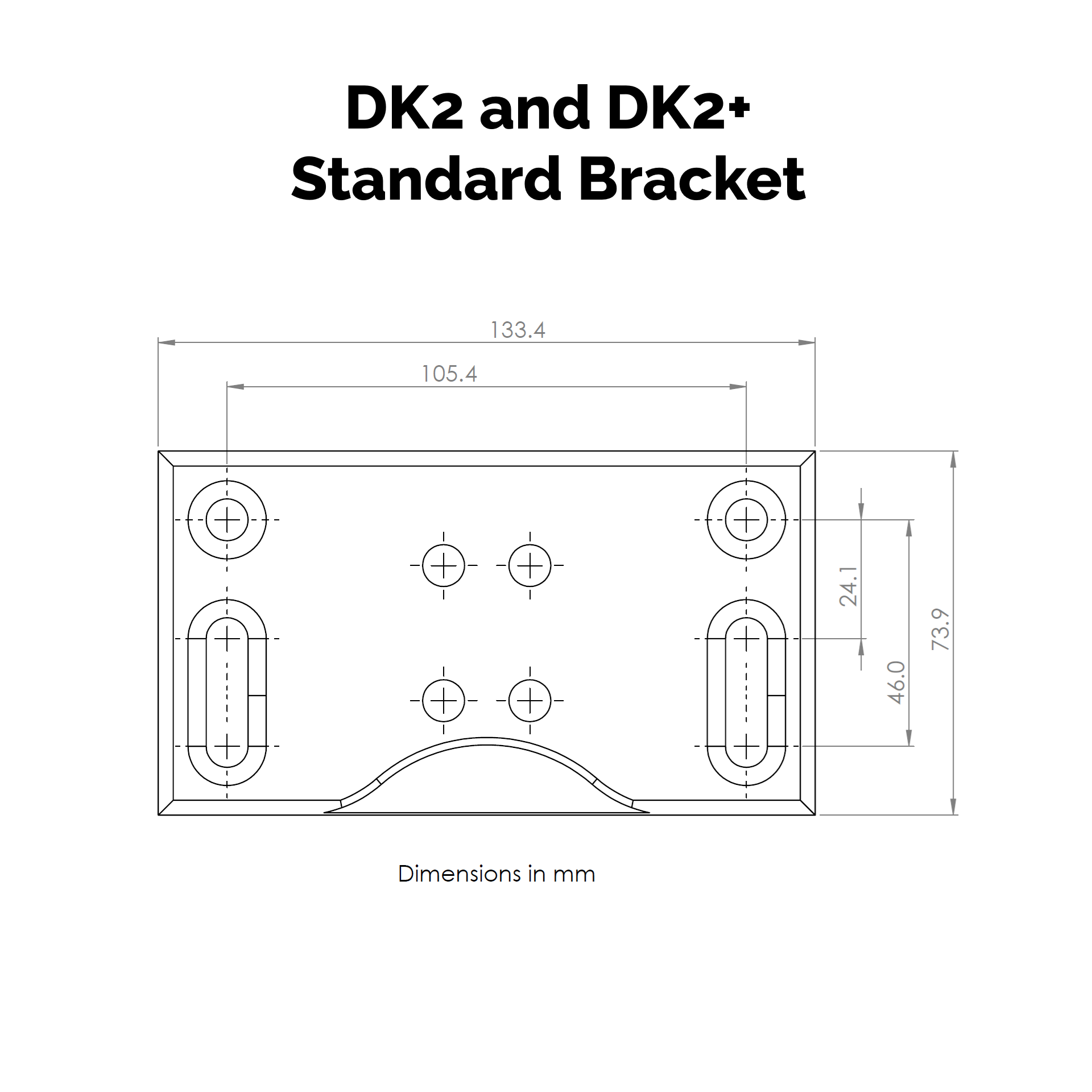

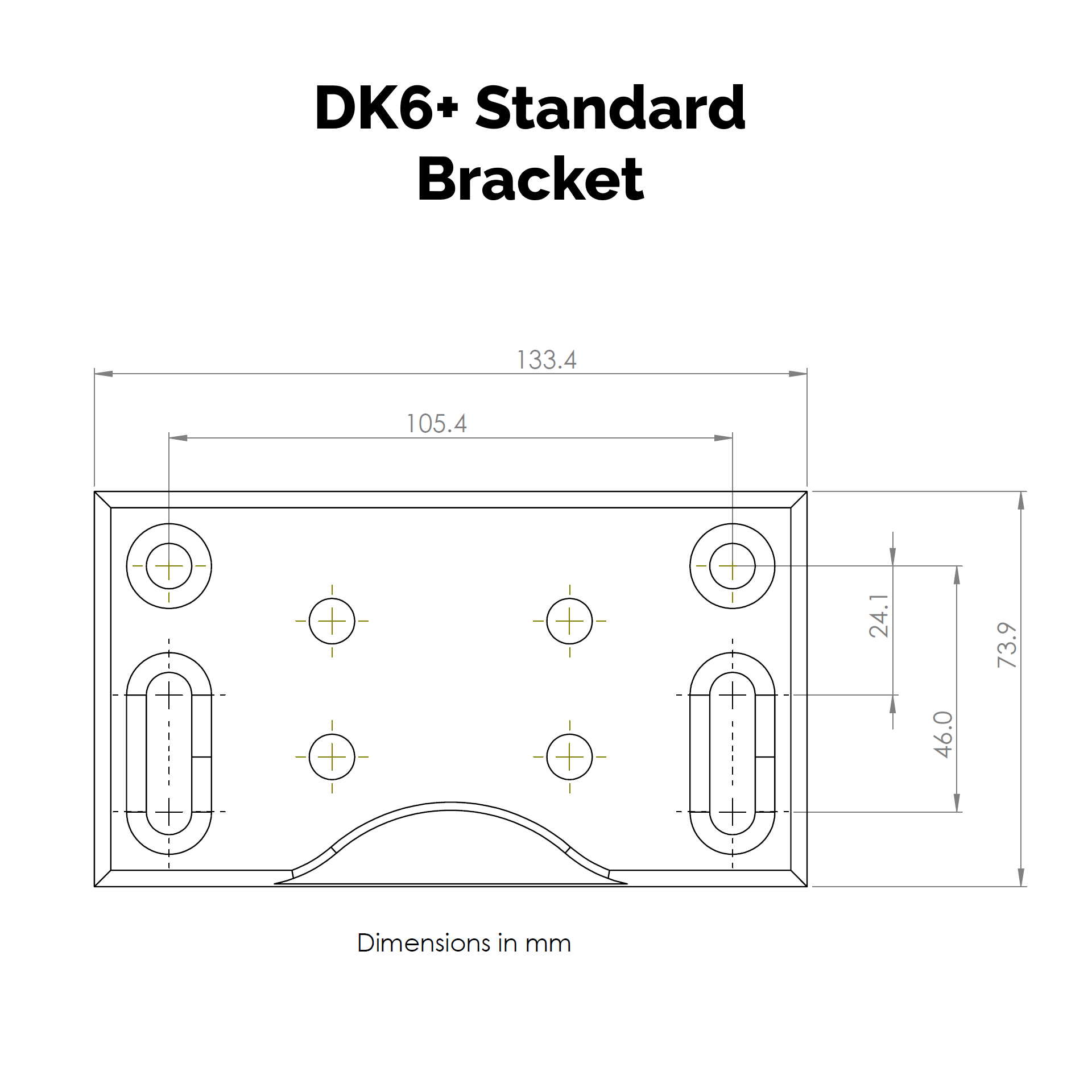

- Standard Brackets have spacing for 25mm to 45mm channel width

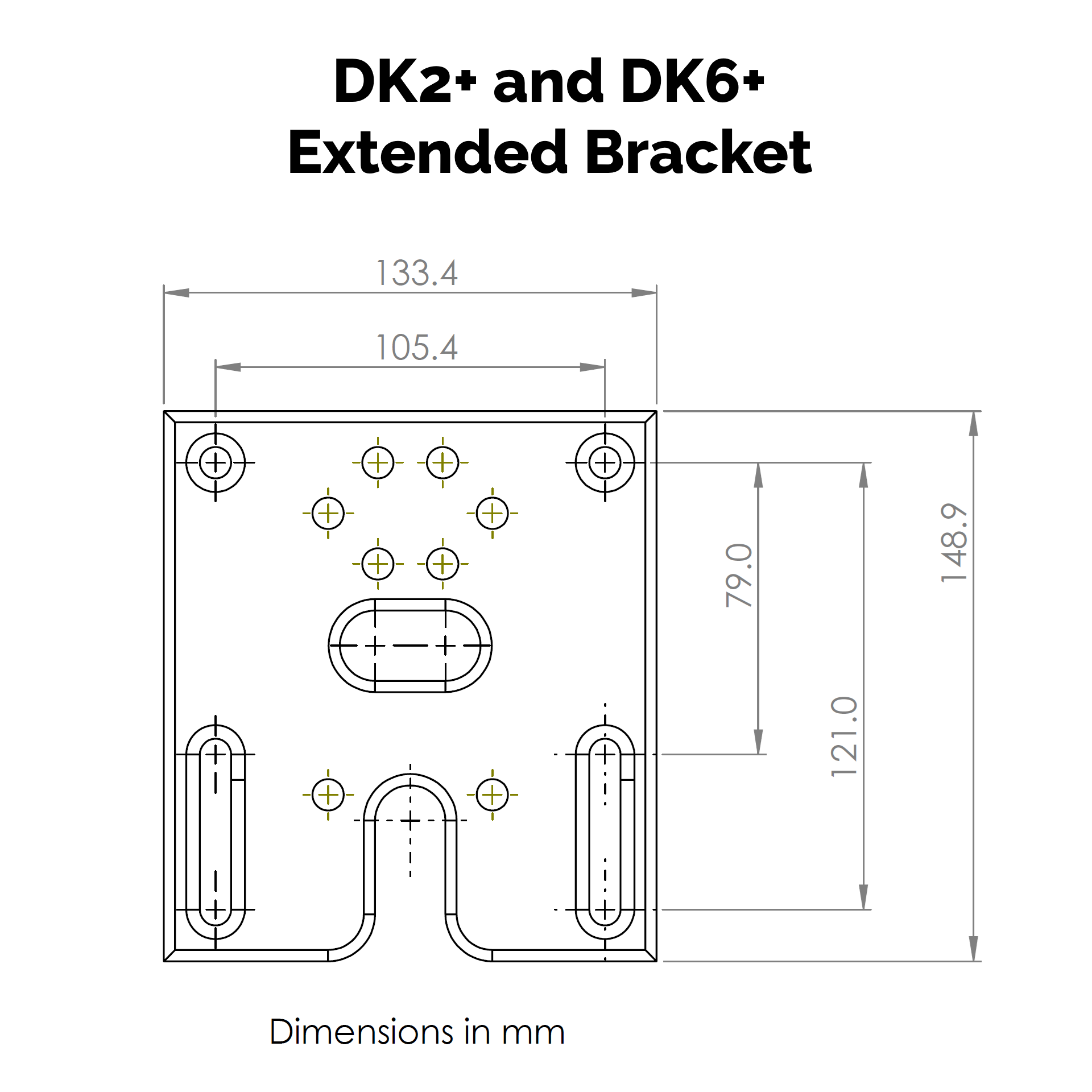

- Extended Brackets have spacing for up to 160mm channel widths (Sim-Lab, Sabelt and others)
- Includes mounting hardware (bolts and t-slot nuts)
- Standard bracket weight - 290g or 10oz each
- Extended bracket weight - 540g or 1.2lbs each
- DK2 brackets only come in tumbled silver finish
- DK2+ and DK6+ extended and standard brackets come in black anodized finish

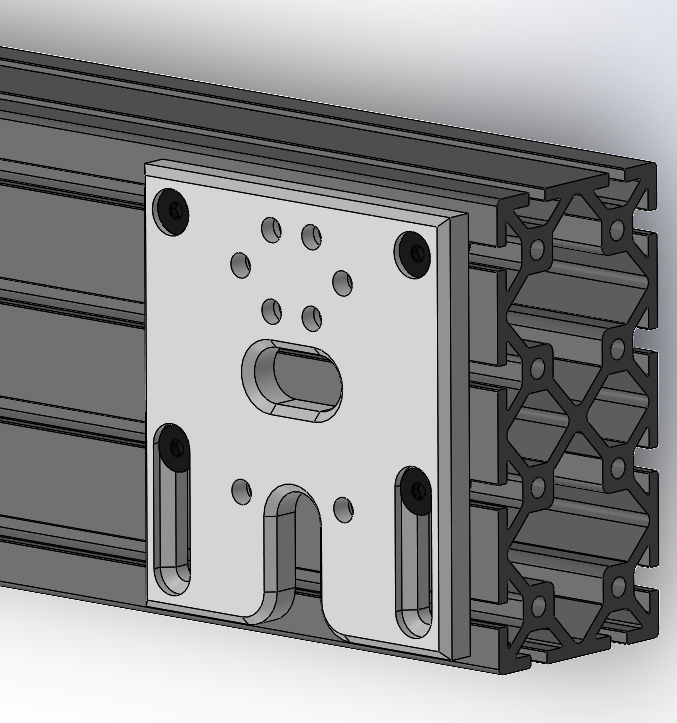

Chassis that have wide side extrusion such as Sim-Lab P1X, Sabelt, Trakracer TR160 and some others do require our extended brackets to span the entire height of the extrusion.
DK Bracket Set
Sale price$200.00
